Overview

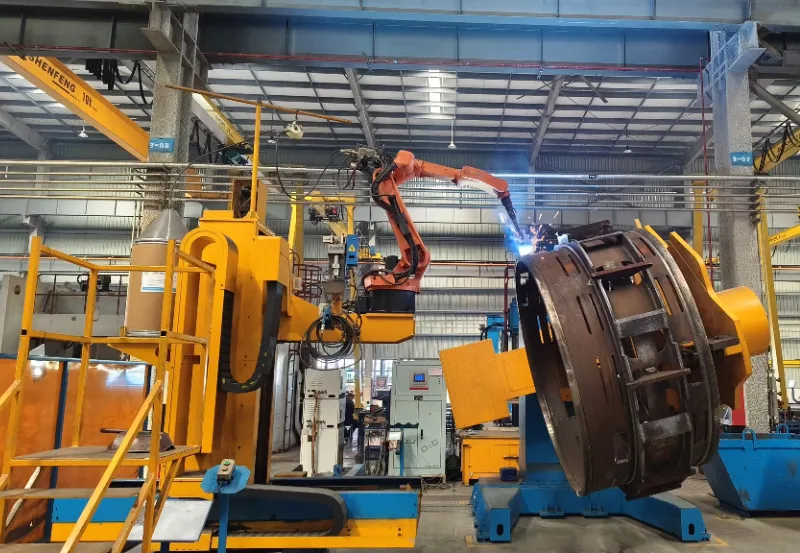

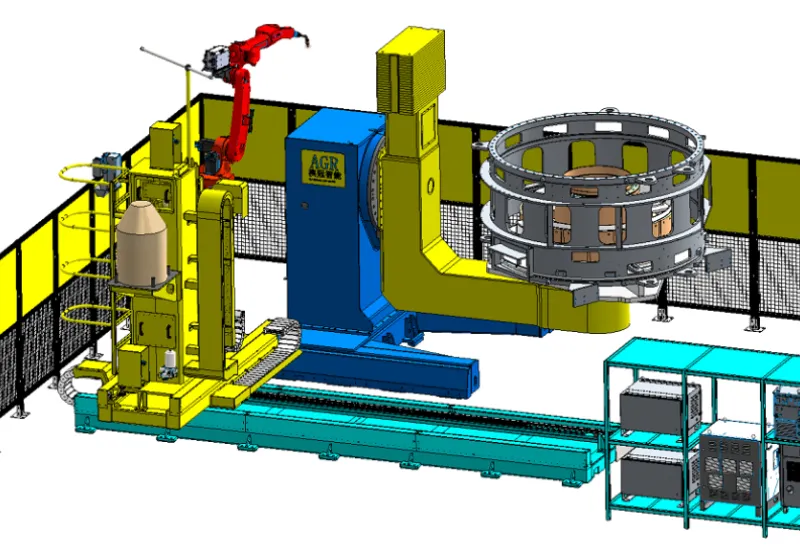

AGR Robotics engineered a robotic welding system for wind turbine stators and rotors, optimized for large-diameter structures requiring high-strength, low-distortion welding.

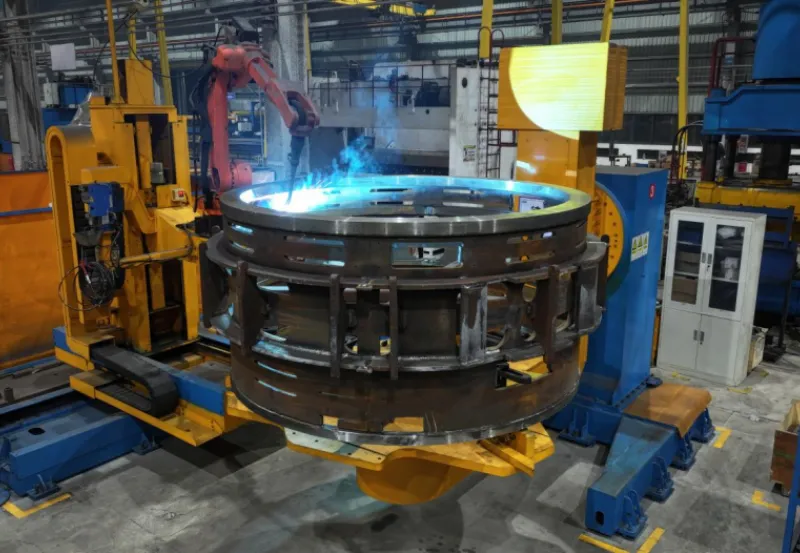

Equipped with multi-axis servo positioners, adaptive seam tracking, and dual synchronized robots, the system achieves deep penetration and dimensional consistency across complex circular welds.
This renewable energy welding solution delivers UT-grade precision, ensuring long-term reliability and repeatable quality under demanding industrial standards.
AGR Technical Highlights
• Dual synchronized Panasonic TM-1800 welding robots for continuous seam coordination
• ±0.05 mm TCP accuracy for large-diameter circumferential joints
• 3-axis servo positioners for stator and rotor rotation alignment
• Adaptive arc control (YD-500GS5) for stable waveform on thick steel plates
• Custom heavy-duty fixture supporting components up to 2.5 m diameter
