The excavator track beam forms the main support of the undercarriage system, connecting the track frames and absorbing constant vibration and heavy loads.

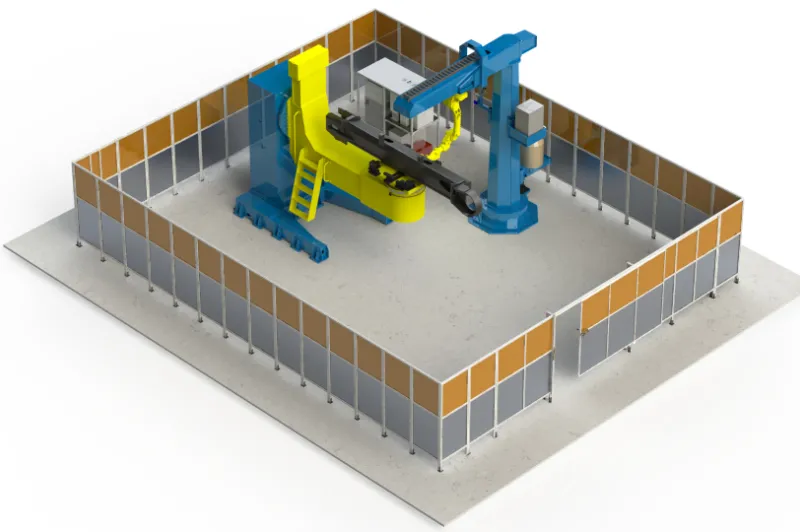

To ensure strength and long-term reliability, AGR Robotics developed a robotic welding station designed for thick-section, multi-angle welding of track beam assemblies.

Equipped with servo-controlled positioners and high-current CO₂ arc welding, the system achieves deep fusion with precise control of heat input.

Its adaptive seam tracking technology ensures consistent penetration even under material tolerance variations.

By replacing manual welding with automated precision control, the system enhances throughput, consistency, and fatigue resistance — providing a robust, high-efficiency welding solution for modern excavator undercarriages.

AGR Robotic Welding Solution for Excavator Track Beams | AGR Robotics：

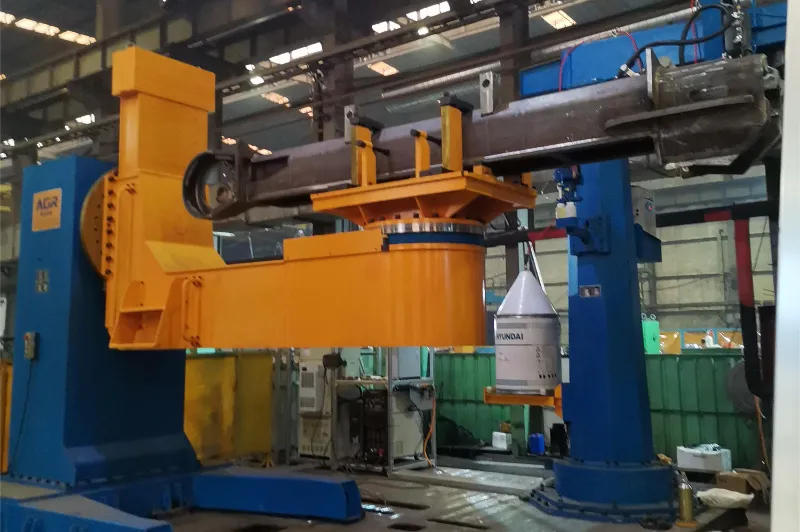

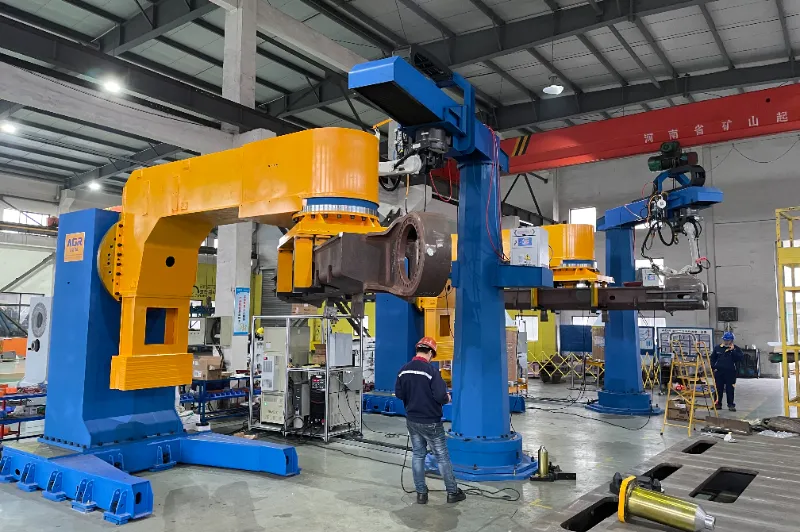

AGR designed an advanced robotic welding station for the production of excavator track beams, integrating high-strength arc welding, adaptive control, and multi-axis positioning to achieve precision, durability, and speed.

Key Features:

• Panasonic TM-1800 G3 welding robot equipped with CO₂ arc welding for strong, deep-penetration joints.

• ±0.08 mm positioning accuracy ensures precise torch control and repeatable weld alignment on long structural members.

• Servo-driven positioners enable multi-angle welding for both inner and outer track beam seams.

• Adaptive seam tracking maintains uniform penetration under varying material thickness and joint geometry.

• Productivity increased by over 25%, reducing manual labor while enhancing weld uniformity and fatigue resistance.
